                    Product Description:

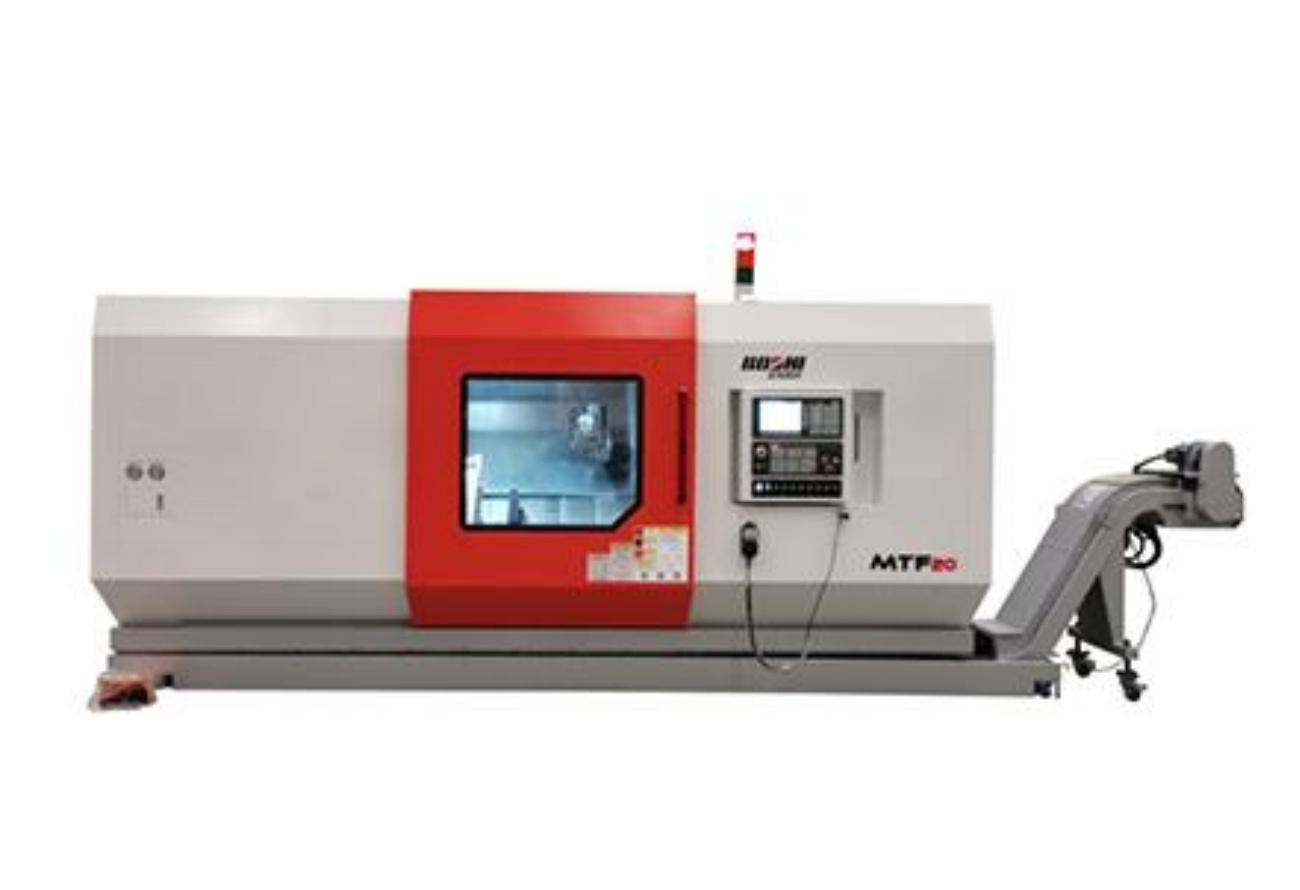

                    MTF20 dual spindle dual tool holder CNC lathe, the machine tool adopts dual spindle, dual tool holders in the column layout, wide number of CNC control system, can realize dual spindle, dual tool holders at the same time turning processing. The Z feed of the machine tool can complete the two-way clamping of the workpiece, realize the positive and negative machining of the workpiece, and complete all the turning processing of the workpiece under one clamping, which can be widely applied to the processing requirements of new energy, automobile, light industry and other industries.

                    Technical Specifications:


                    Item

                    Unit

                    Specifications



                    Capacity







                    Max. processing diameter

                    mm

                    Φ 250

                    Max. workpiece length

                    mm

                    1100

                    Max. processing length

                    mm

                    1000

                    Max. processing bar diameter

                    mm

                    Φ 65

                    Spindle











                    Hydraulic chuck diameter

                    mm(in)

                    Φ 2 10(8 ″ )

                    Spindle nose



                    A2- 6(GB/T5900.1)

                    spindle thru-hole

                    mm

                    Φ 66

                    Spindle bearing diameter (front/rear)

                    mm

                    Φ 1 2 0/ Φ 95

                    Max.speed of spindle

                    r/min

                    3000

                    Main motor power

                    KW

                    22

                    Apron













                    Travel distance

                    X1/X2

                    mm

                    210/210



                    Z1/Z2/Z3



                    1050

                    Rapid feed speed



                    X1/X2

                    m/min

                    24/30



                    Z1/Z2/Z3





                    Servo motor torque

                    X1/X2



                    10Nm



                    Z1/Z2/Z3



                    22 Nm

                    Ball screw diameter X1, X2/Z1, Z2, Z3

                    mm

                    36/36

                    Turret



                    Number of stations



                    Upper Turret Vertical 170 Four Stations,

                    Lower Turret 1 Fixed Knife Seat

                    Tool size

                    mm

                    2 5x 2 5

                    Sub-spindle





                    Chuck size

                    mm(in)

                    Φ 210 ( 8 ")

                    Main motor power

                    kW

                    22

                    Max.speed of spindle

                    r/min

                    3000

                    Others





                    Power Supply

                    kVA

                    50

                    Volume (length x width x height)

                    mm

                    5600 × 2452 × 2260 (including chip conveyor)

                    Total weight

                    kg

                    9200
