                    CK7660LE watch video
                    Product Description:

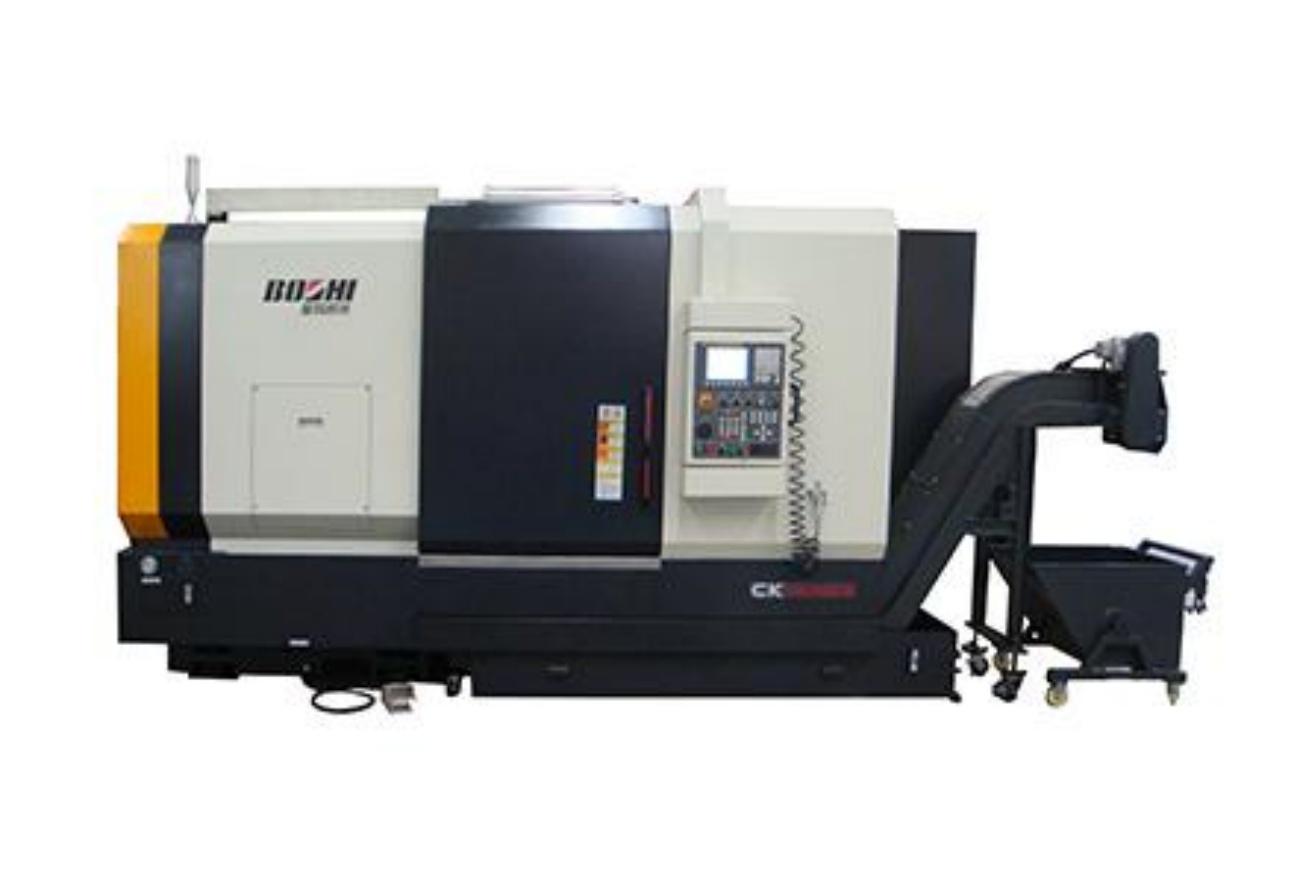

                    CK7670LE is a full-featured CNC lathe specially developed for high-speed and high-precision turning of aluminum alloy wheels in the automotive and motorcycle industries, with a maximum capacity of 24" wheels.

                    Technical Specifications:


                    Item

                    unit

                    Specifications

                    Capacity







                    Max. swing diameter over bed

                    mm

                    Φ830

                    Max. swing diameter over slide

                    mm

                    Φ650

                    Max. turning diameter

                    mm

                    Φ680

                    Maximum turning wheel diameter

                    inch

                    24

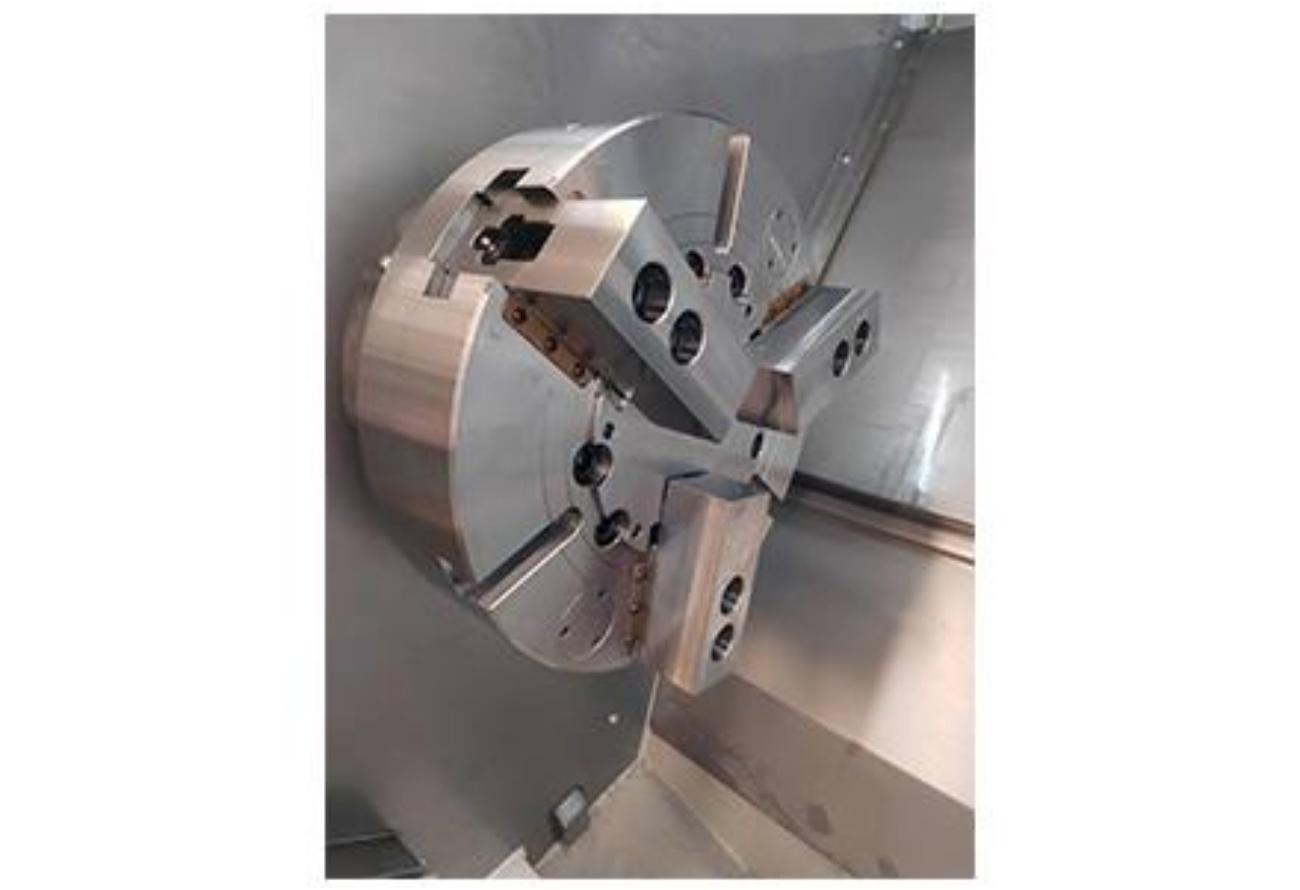

                    Spindle













                    Spindle nose

                    GB5900.1

                    A2-11

                    Spindle bore taper

                    Metric system

                    1:20

                    spindle thru-hole

                    mm

                    Φ105

                    Spindle bearing diameter (front/rear)

                    mm

                    Φ160/Φ140

                    Spindle speed

                    r/min

                    22-2200

                    Main motor power (continuous/30 minutes)

                    kW

                    37/45

                    Max. output torque of spindle

                    Nm

                    670

                    Apron









                    Slant angle

                    DEG

                    45°

                    Travel distance X/Z

                    mm

                    360/880

                    Fast movement speed X/Z

                    m/min

                    16/20

                    Servo motor torque X/Z

                    Nm

                    22/30

                    Ball screw diameter X/Z

                    mm

                    Φ40/Φ50

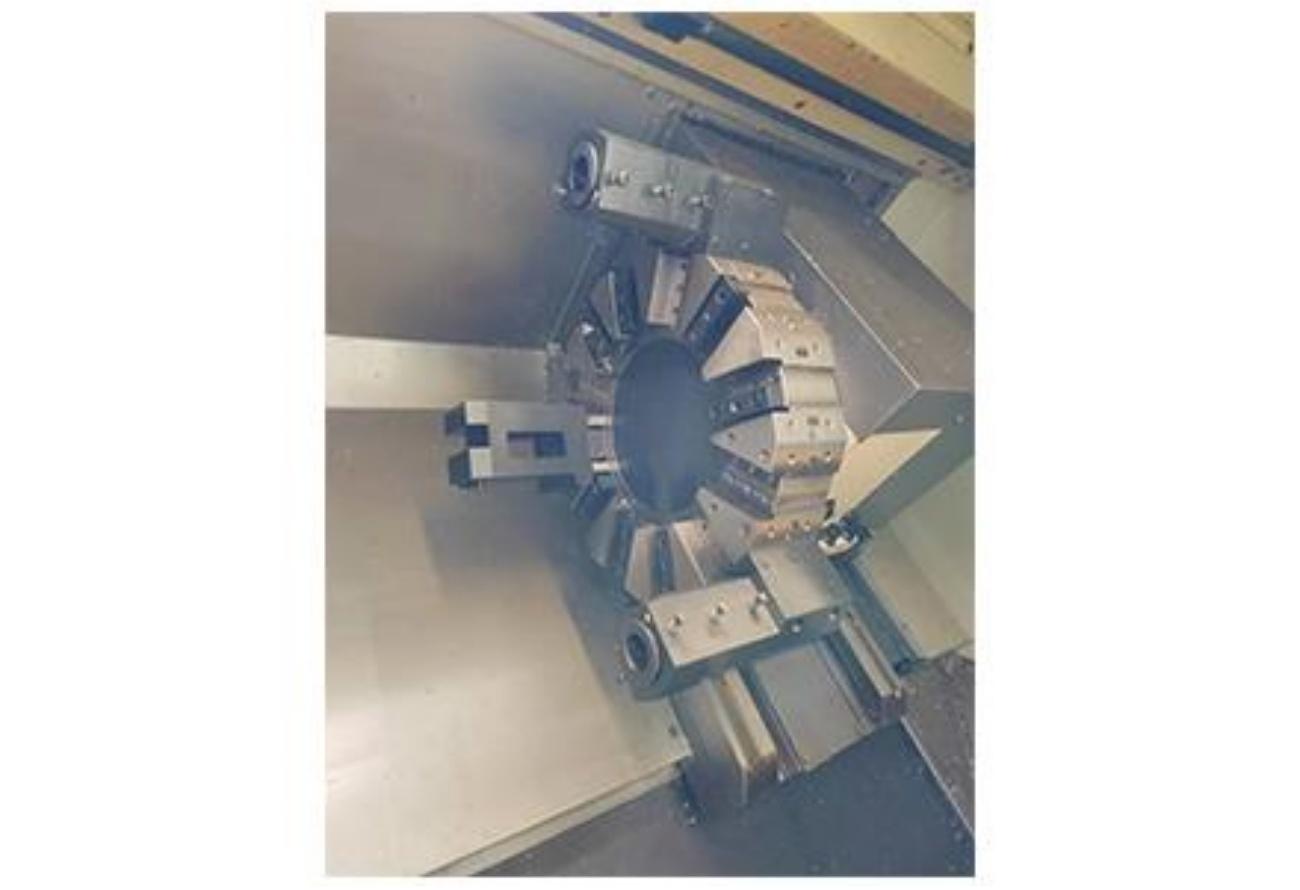

                    Turret



                    Number of stations



                    12

                    Tool size (turning/boring)

                    mm

                    32X32/Φ50

                    Others





                    Power capacity

                    kVA

                    60

                    Volume (length x width x height) including chip conveyor

                    mm

                    5580×2490×2460

                    weight

                    kg

                    10000
