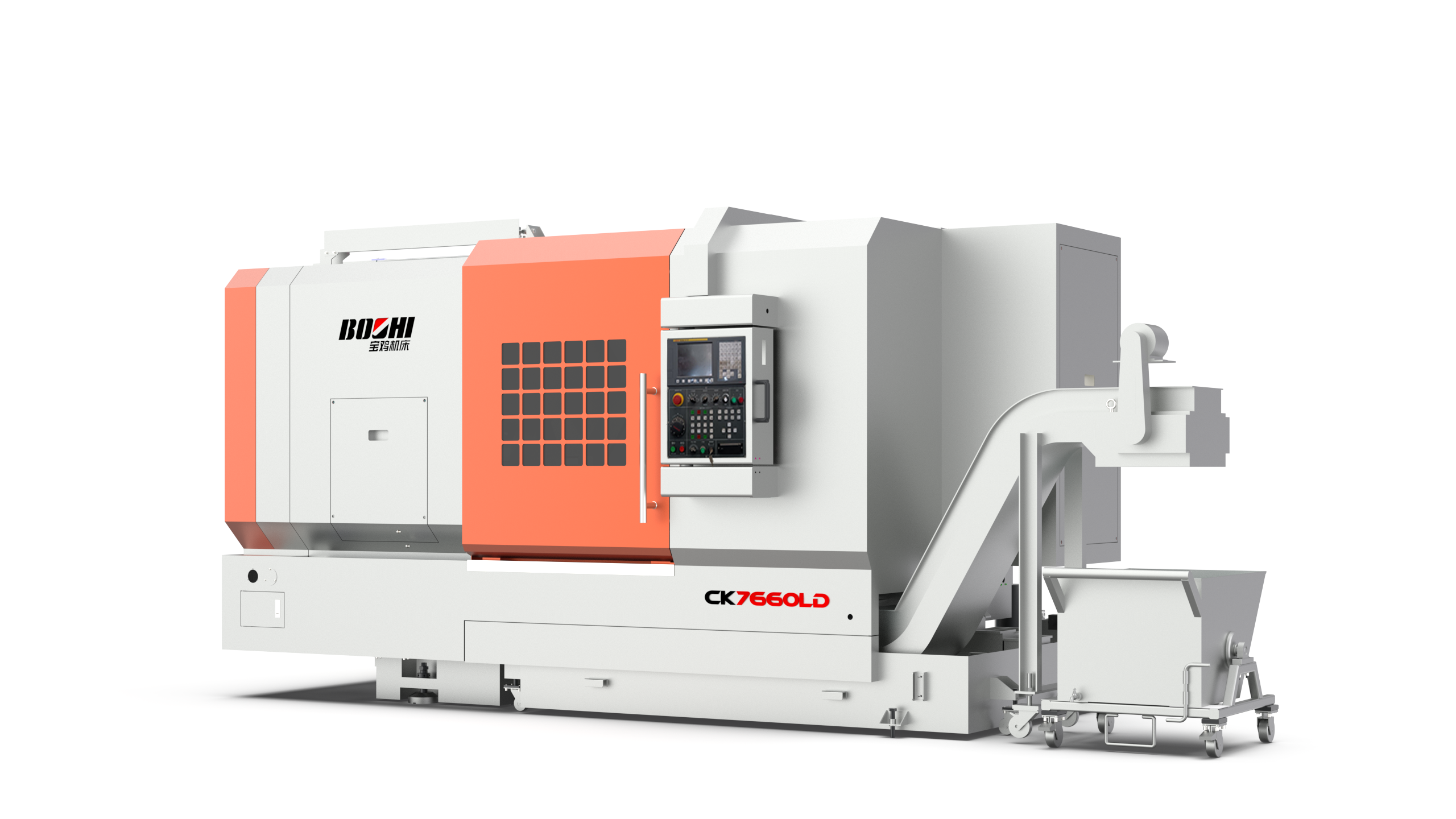

CK7660LD CNC horizontal machine is based on aluminum alloy wheel bright surface processing requirements and development of CNC lathe, equipped with FANUC built-in motorized spindle, can minimize the vibration occurred during processing, achieve fast acceleration and deceleration and high quality product processing.
|
Item |
Unit |
Specifications |
|
|
Capacity |
Max swing over bed |
mm |
Φ750 |
|
Max swing over slide |
mm |
Φ610 |
|
|
Max turning diameter |
mm |
Φ630 |
|
|
主
軸 |
Spindle nose
|
GB5900.1 |
A2-8 |
|
Taper of spindle bore |
公制 |
1:20 |
|
|
Spindle thru-hole |
mm |
Φ87 |
|
|
Spindle bearing diameter(front/rear) |
mm |
Φ160/Φ120 |
|
|
Spindle speed
|
r/min |
20-2500 |
|
|
Main motor power(cont/30min) |
kW |
37/45 |
|
|
Max. output torque of spindle
|
Nm |
307 |
|
|
Carriage |
Slant degree |
DEG |
45° |
|
X/Z-axis travel |
mm |
350/750 |
|
|
X/Z-axis rapid traverse |
m/min |
16/20 |
|
|
X/Z-axis servo motor torque |
Nm |
22/22 |
|
|
X/Z-axis ball screw diameter |
mm |
Φ40X8/Φ50X10 |
|
|
Turret |
Number of stations/ revolving tool stations |
|
12 |
|
Tool section (turning/boring) |
mm |
25×25/Φ50 |
|
|
Others |
Power source |
kVA |
55 |
|
Dimension(L×W×H) |
mm |
4960×2350×2265 |
|
|
Gross weight |
kg |
10500(8300) |
