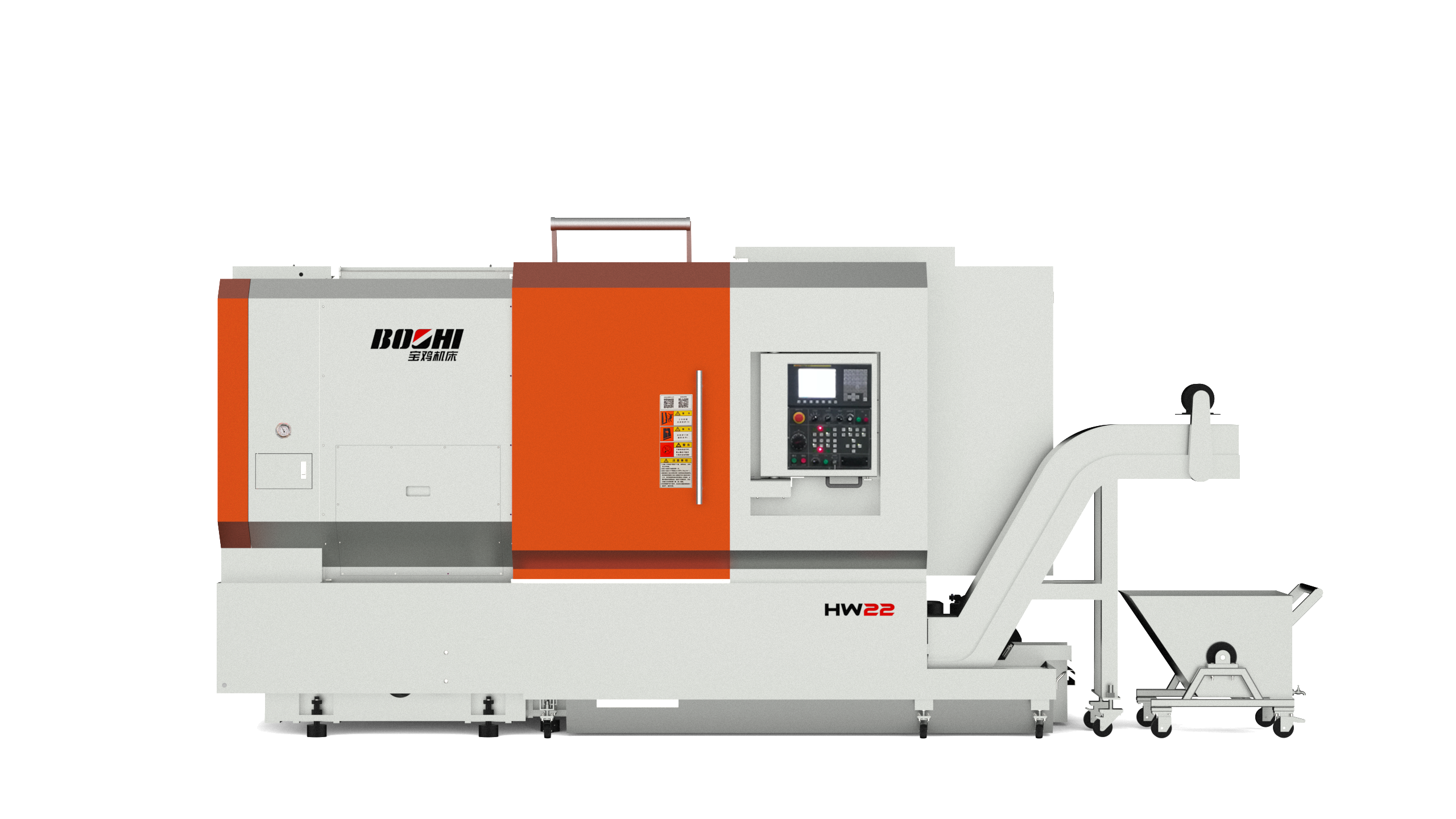

                    HW22 CNC LATHE watch video
                    Product Description:

                    HW22 is a CNC lathe developed for aluminum alloy wheel turning of automobile and motorcycle industry. The machine adopts integral inclined bed, sliding stick plastic guide rail, through-hole spindle, 12 position tool rest, full protection, large flow chip flushing system, etc.



                    HW22 is suitable for the primary and secondary processing of 12 "~ 22" aluminum alloy wheels.


                    Technical Specifications:



                    Items

                    unit

                    Parameter

                    HW22

                    Capacity

                    Max. swing over bed

                    mm

                    Φ790

                    Max. swing over slide

                    mm

                    Φ620

                    Max. turning dia.

                    mm

                    Φ620

                    spindle

                    Spindle nose

                    GB5900.1

                    A2-8

                    Dia.and taper of spindle bore

                    公制

                    1:20 大端Ф113

                    Spindle thru-hole

                    mm

                    Φ105

                    Spindle bearing diameter(front/rear)

                    mm

                    Φ160/Φ150

                    Spindle speed

                    r/min

                    22-2500

                    Main motor power(cont/30min)

                    kW

                    30/37

                    MAX.Spindle output torque

                    N•m

                    365

                    Carriage

                    Slant degree

                    DEG

                    45°

                    X/ Z axis travel

                    mm

                    30+350/750

                    X/ Z axis rapid traverse

                    m/min

                    16/20

                    X/ Z axis servo motor torque

                    N•m

                    22/22

                    X/ Zaxis ball screw diameter

                    mm

                    Φ40/Φ50

                    turret

                    Number of stations/ revolving tool stations



                    12

                    Tool section (turning/boring)

                    mm

                    32x32/Φ50

                    Others

                    Power source

                    kVA

                    55

                    Dimension(L×W×H)

                    mm

                    5370×2260×2600

                    Net weight

                    kg

                    9600(9300)
